Seleziona modello

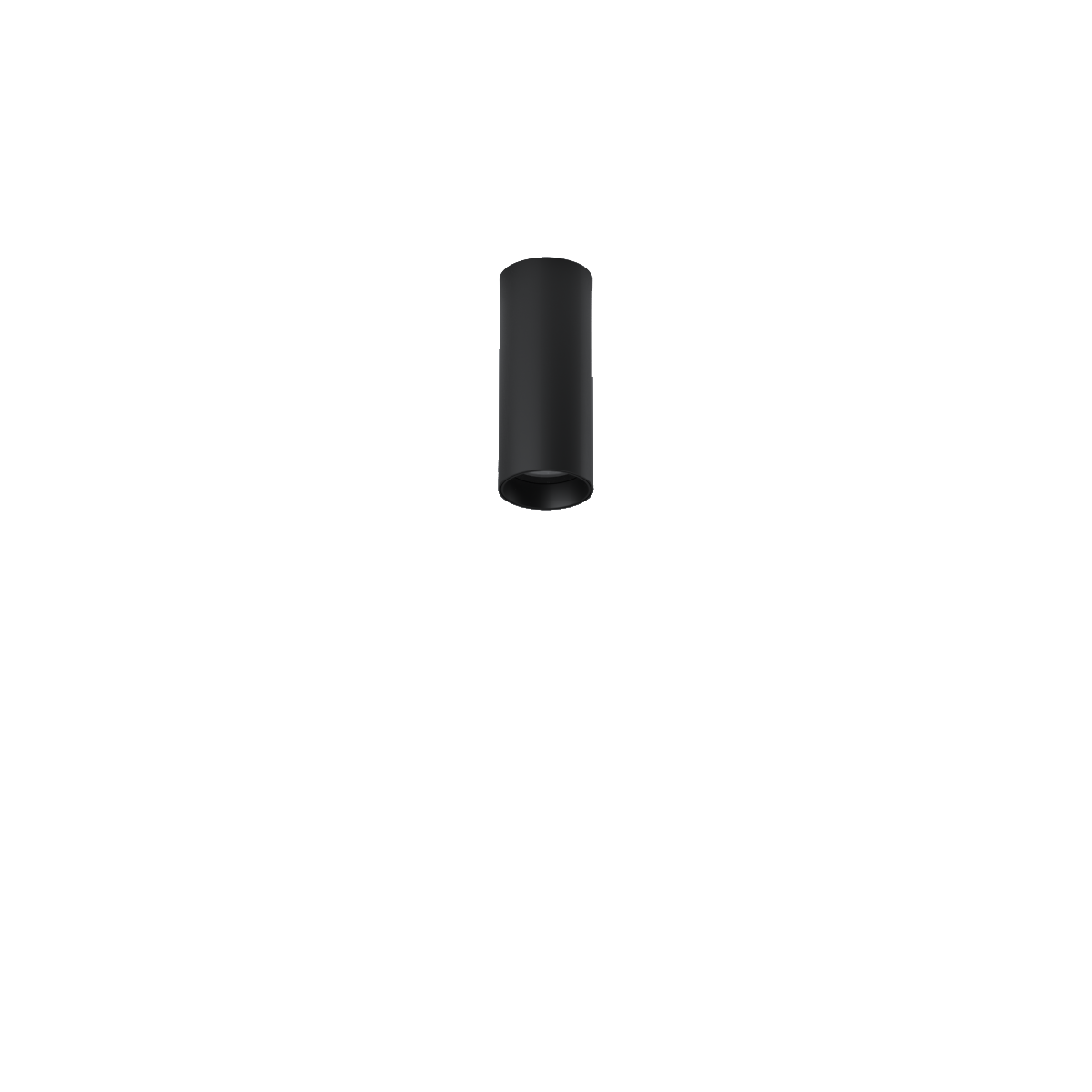

PIPE 40
PIPE 50
PIPE 60

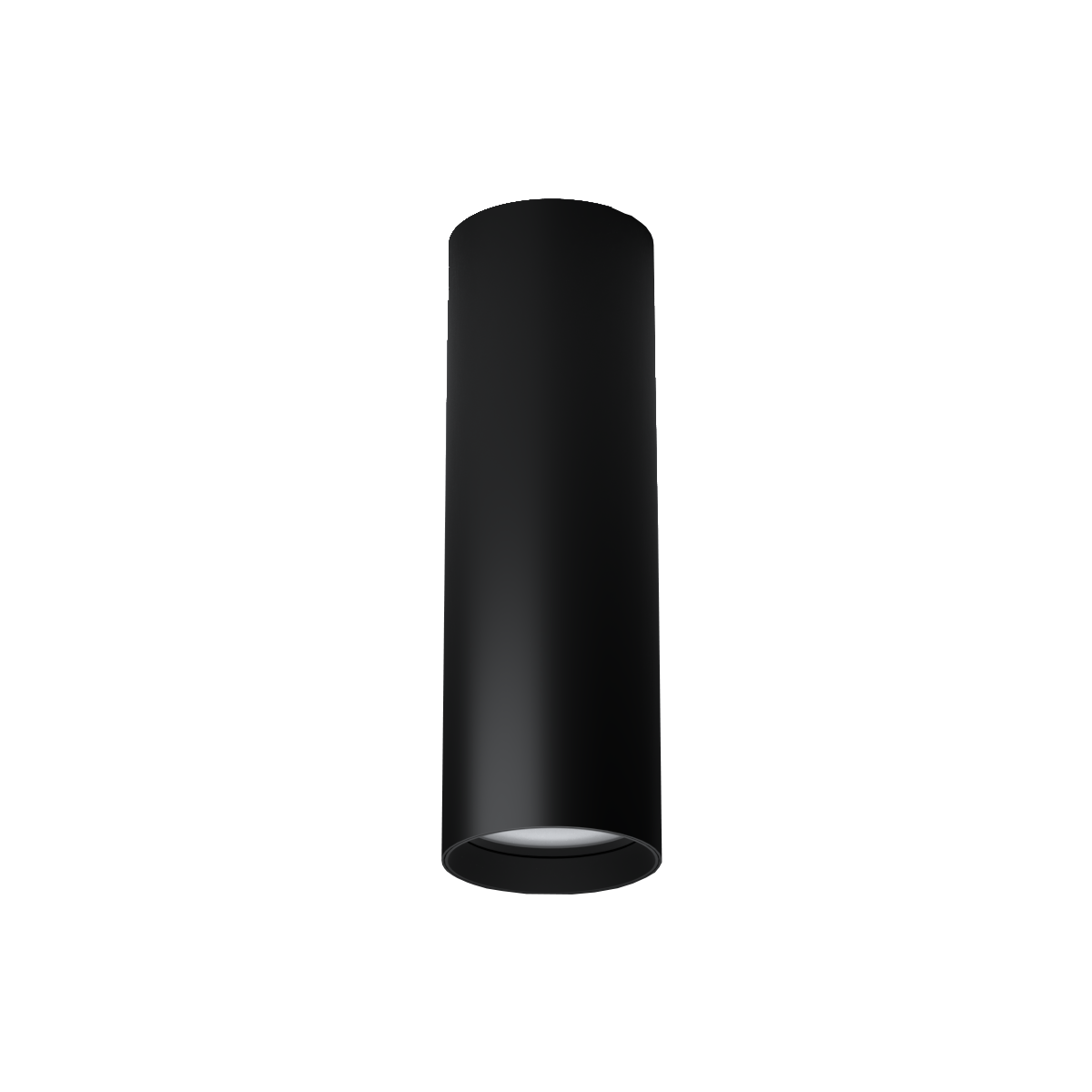

PIPE 80
| Modello | Codice | P (W) | Flusso (lm) | CCT | Ottica | Efficienza luminosa | Finitura | Driver | Download |
| PIPE 40 | G2447PL0063NW_40 | 6 | 692 | 4000 | 15° | 115 lm/W | bianca | 350mA | Download scheda |
| Curva Fotometrica | G2447PL0063NW_27 | 6 | 664 | 2700 | 15° | 110 lm/W | bianca | 350mA | Download scheda |
| Foglio Istruzioni | G2447PL0063NW | 6 | 678 | 3000 | 15° | 113 lm/W | bianca | 350mA | Download scheda |
| G2447PL0063NB_40 | 6 | 692 | 4000 | 15° | 115 lm/W | nera | 350mA | Download scheda | |
| G2447PL0063NB_27 | 6 | 664 | 2700 | 15° | 110 lm/W | nera | 350mA | Download scheda | |
| G2447PL0063NB | 6 | 678 | 3000 | 15° | 113 lm/W | nera | 350mA | Download scheda | |
| G2447PL0063MW_40 | 6 | 692 | 4000 | 38° | 115 lm/W | bianca | 350mA | Download scheda | |
| G2447PL0063MW_27 | 6 | 664 | 2700 | 38° | 110 lm/W | bianca | 350mA | Download scheda | |
| G2447PL0063MW | 6 | 678 | 3000 | 38° | 113 lm/W | bianca | 350mA | Download scheda | |
| G2447PL0063MB_40 | 6 | 692 | 4000 | 38° | 115 lm/W | nera | 350mA | Download scheda | |
| G2447PL0063MB_27 | 6 | 664 | 2700 | 38° | 110 lm/W | nera | 350mA | Download scheda | |
| G2447PL0063MB | 6 | 678 | 3000 | 38° | 113 lm/W | nera | 350mA | Download scheda | |
| G2447PL0063LW_40 | 6 | 692 | 4000 | 55° | 115 lm/W | bianca | 350mA | Download scheda | |
| G2447PL0063LW_27 | 6 | 664 | 2700 | 55° | 110 lm/W | bianca | 350mA | Download scheda | |
| G2447PL0063LW | 6 | 678 | 3000 | 55° | 113 lm/W | bianca | 350mA | Download scheda | |
| G2447PL0063LB_40 | 6 | 692 | 4000 | 55° | 115 lm/W | nera | 350mA | Download scheda | |
| G2447PL0063LB_27 | 6 | 664 | 2700 | 55° | 110 lm/W | nera | 350mA | Download scheda | |
| G2447PL0063LB | 6 | 678 | 3000 | 55° | 113 lm/W | nera | 350mA | Download scheda | |
| G2447PL0062NW_40 | 6 | 692 | 4000 | 15° | 115 lm/W | bianca | 24V | Download scheda | |
| G2447PL0062NW_27 | 6 | 664 | 2700 | 15° | 110 lm/W | bianca | 24V | Download scheda | |
| G2447PL0062NW | 6 | 678 | 3000 | 15° | 113 lm/W | bianca | 24V | Download scheda | |
| G2447PL0062NB_40 | 6 | 692 | 4000 | 15° | 115 lm/W | nera | 24V | Download scheda | |
| G2447PL0062NB_27 | 6 | 664 | 2700 | 15° | 110 lm/W | nera | 24V | Download scheda | |
| G2447PL0062NB | 6 | 678 | 3000 | 15° | 113 lm/W | nera | 24V | Download scheda | |
| G2447PL0062MW_40 | 6 | 692 | 4000 | 38° | 115 lm/W | bianca | 24V | Download scheda | |
| G2447PL0062MW_27 | 6 | 664 | 2700 | 38° | 110 lm/W | bianca | 24V | Download scheda | |
| G2447PL0062MW | 6 | 678 | 3000 | 38° | 113 lm/W | bianca | 24V | Download scheda | |
| G2447PL0062MB_40 | 6 | 692 | 4000 | 38° | 115 lm/W | nera | 24V | Download scheda | |
| G2447PL0062MB_27 | 6 | 664 | 2700 | 38° | 110 lm/W | nera | 24V | Download scheda | |
| G2447PL0062MB | 6 | 678 | 3000 | 38° | 113 lm/W | nera | 24V | Download scheda | |
| G2447PL0062LW_40 | 6 | 692 | 4000 | 55° | 115 lm/W | bianca | 24V | Download scheda | |
| G2447PL0062LW_27 | 6 | 664 | 2700 | 55° | 110 lm/W | bianca | 24V | Download scheda | |
| G2447PL0062LW | 6 | 678 | 3000 | 55° | 113 lm/W | bianca | 24V | Download scheda | |
| G2447PL0062LB_40 | 6 | 692 | 4000 | 55° | 115 lm/W | nera | 24V | Download scheda | |
| G2447PL0062LB_27 | 6 | 664 | 2700 | 55° | 110 lm/W | nera | 24V | Download scheda | |
| G2447PL0062LB | 6 | 678 | 3000 | 55° | 113 lm/W | nera | 24V | Download scheda |
| Modello | Codice | P (W) | Flusso (lm) | CCT | Ottica | Efficienza luminosa | Finitura | Driver | Download |
| PIPE 50 | G0108PL0091NW_40 | 10 | 922 | 4000 | 15° | 92 lm/W | bianca | ON/OFF | Download scheda |
| Curva Fotometrica | G0108PL0091NW_27 | 10 | 885 | 2700 | 15° | 88 lm/W | bianca | ON/OFF | Download scheda |
| Foglio Istruzioni | G0108PL0091NW | 10 | 904 | 3000 | 15° | 90 lm/W | bianca | ON/OFF | Download scheda |
| G0108PL0091NB_40 | 10 | 922 | 4000 | 15° | 92 lm/W | nera | ON/OFF | Download scheda | |
| G0108PL0091NB_27 | 10 | 885 | 2700 | 15° | 88 lm/W | nera | ON/OFF | Download scheda | |
| G0108PL0091NB | 10 | 904 | 3000 | 15° | 90 lm/W | nera | ON/OFF | Download scheda | |
| G0108PL0091MW_40 | 10 | 922 | 4000 | 38° | 92 lm/W | bianca | ON/OFF | Download scheda | |
| G0108PL0091MW_27 | 10 | 885 | 2700 | 38° | 88 lm/W | bianca | ON/OFF | Download scheda | |
| G0108PL0091MW | 10 | 904 | 3000 | 38° | 90 lm/W | bianca | ON/OFF | Download scheda | |
| G0108PL0091MB_40 | 10 | 922 | 4000 | 38° | 92 lm/W | nera | ON/OFF | Download scheda | |
| G0108PL0091MB_27 | 10 | 885 | 2700 | 38° | 88 lm/W | nera | ON/OFF | Download scheda | |
| G0108PL0091MB | 10 | 904 | 3000 | 38° | 90 lm/W | nera | ON/OFF | Download scheda | |
| G0108PL0091LW_40 | 10 | 922 | 4000 | 55° | 92 lm/W | bianca | ON/OFF | Download scheda | |
| G0108PL0091LW_27 | 10 | 885 | 2700 | 55° | 88 lm/W | bianca | ON/OFF | Download scheda | |
| G0108PL0091LW | 10 | 904 | 3000 | 55° | 90 lm/W | bianca | ON/OFF | Download scheda | |
| G0108PL0091LB_40 | 10 | 922 | 4000 | 55° | 92 lm/W | nera | ON/OFF | Download scheda | |
| G0108PL0091LB_27 | 10 | 885 | 2700 | 55° | 88 lm/W | nera | ON/OFF | Download scheda | |
| G0108PL0091LB | 10 | 904 | 3000 | 55° | 90 lm/W | nera | ON/OFF | Download scheda |
| Modello | Codice | P (W) | Flusso (lm) | CCT | Ottica | Efficienza luminosa | Finitura | Driver | Download |
| PIPE 60 | G0104PL0131NW_40 | 13 | 1141 | 4000 | 15° | 88 lm/W | bianca | ON/OFF | Download scheda |
| Curva Fotometrica | G0104PL0131NW_27 | 13 | 1096 | 2700 | 15° | 84 lm/W | bianca | ON/OFF | Download scheda |
| Foglio Istruzioni | G0104PL0131NW | 13 | 1119 | 3000 | 15° | 86 lm/W | bianca | ON/OFF | Download scheda |
| G0104PL0131NB_40 | 13 | 1141 | 4000 | 15° | 88 lm/W | nera | ON/OFF | Download scheda | |
| G0104PL0131NB_27 | 13 | 1096 | 2700 | 15° | 84 lm/W | nera | ON/OFF | Download scheda | |
| G0104PL0131NB | 13 | 1119 | 3000 | 15° | 86 lm/W | nera | ON/OFF | Download scheda | |
| G0104PL0131MW_40 | 13 | 1141 | 4000 | 38° | 88 lm/W | bianca | ON/OFF | Download scheda | |
| G0104PL0131MW_27 | 13 | 1096 | 2700 | 38° | 84 lm/W | bianca | ON/OFF | Download scheda | |
| G0104PL0131MW | 13 | 1119 | 3000 | 38° | 86 lm/W | bianca | ON/OFF | Download scheda | |
| G0104PL0131MB_40 | 13 | 1141 | 4000 | 38° | 88 lm/W | nera | ON/OFF | Download scheda | |
| G0104PL0131MB_27 | 13 | 1096 | 2700 | 38° | 84 lm/W | nera | ON/OFF | Download scheda | |
| G0104PL0131MB | 13 | 1119 | 3000 | 38° | 86 lm/W | nera | ON/OFF | Download scheda | |
| G0104PL0131LW_40 | 13 | 1141 | 4000 | 55° | 88 lm/W | bianca | ON/OFF | Download scheda | |
| G0104PL0131LW_27 | 13 | 1096 | 2700 | 55° | 84 lm/W | bianca | ON/OFF | Download scheda | |
| G0104PL0131LW | 13 | 1119 | 3000 | 55° | 86 lm/W | bianca | ON/OFF | Download scheda | |
| G0104PL0131LB_40 | 13 | 1141 | 4000 | 55° | 88 lm/W | nera | ON/OFF | Download scheda | |
| G0104PL0131LB_27 | 13 | 1096 | 2700 | 55° | 84 lm/W | nera | ON/OFF | Download scheda | |
| G0104PL0131LB | 13 | 1119 | 3000 | 55° | 86 lm/W | nera | ON/OFF | Download scheda |
| Modello | Codice | P (W) | Flusso (lm) | CCT | Ottica | Efficienza luminosa | Finitura | Driver | Download |
| PIPE 80 | G0105PL0251NW_40 | 25 | 2570 | 4000 | 15° | 128 lm/W | bianca | ON/OFF | Download scheda |
| Curva Fotometrica | G0105PL0251NW_27 | 25 | 2469 | 2700 | 15° | 123 lm/W | bianca | ON/OFF | Download scheda |
| Foglio Istruzioni | G0105PL0251NW | 25 | 2520 | 3000 | 15° | 126 lm/W | bianca | ON/OFF | Download scheda |
| G0105PL0251NB_40 | 25 | 2570 | 4000 | 15° | 128 lm/W | nera | ON/OFF | Download scheda | |
| G0105PL0251NB_27 | 25 | 2469 | 2700 | 15° | 123 lm/W | nera | ON/OFF | Download scheda | |
| G0105PL0251NB | 25 | 2520 | 3000 | 15° | 126 lm/W | nera | ON/OFF | Download scheda | |
| G0105PL0251MW_40 | 25 | 2570 | 4000 | 38° | 128 lm/W | bianca | ON/OFF | Download scheda | |
| G0105PL0251MW_27 | 25 | 2469 | 2700 | 38° | 123 lm/W | bianca | ON/OFF | Download scheda | |
| G0105PL0251MW | 25 | 2520 | 3000 | 38° | 126 lm/W | bianca | ON/OFF | Download scheda | |
| G0105PL0251MB_40 | 25 | 2570 | 4000 | 38° | 128 lm/W | nera | ON/OFF | Download scheda | |
| G0105PL0251MB_27 | 25 | 2469 | 2700 | 38° | 123 lm/W | nera | ON/OFF | Download scheda | |
| G0105PL0251MB | 25 | 2520 | 3000 | 38° | 126 lm/W | nera | ON/OFF | Download scheda | |
| G0105PL0251LW_40 | 25 | 2570 | 4000 | 55° | 128 lm/W | bianca | ON/OFF | Download scheda | |
| G0105PL0251LW_27 | 25 | 2469 | 2700 | 55° | 123 lm/W | bianca | ON/OFF | Download scheda | |
| G0105PL0251LW | 25 | 2520 | 3000 | 55° | 126 lm/W | bianca | ON/OFF | Download scheda | |
| G0105PL0251LB_40 | 25 | 2570 | 4000 | 55° | 128 lm/W | nera | ON/OFF | Download scheda | |
| G0105PL0251LB_27 | 25 | 2469 | 2700 | 55° | 123 lm/W | nera | ON/OFF | Download scheda | |
| G0105PL0251LB | 25 | 2520 | 3000 | 55° | 126 lm/W | nera | ON/OFF | Download scheda |
