GARGANTUA | GLIP

Product description

Specifics

Diameter	Lumen	Power
20 mm	189 lm	3W
40 mm	678 lm	6 W
60 mm	1119 lm	13 W
80 mm	2520 lm	20 W

Optics	15°	38°	55°
CCT	2700	3000	4000
CRI	90
Driver	On/Off	DALI*	*on request
Model colour	#	#	RAL on request

Description

Select model

GARGANTUA 40

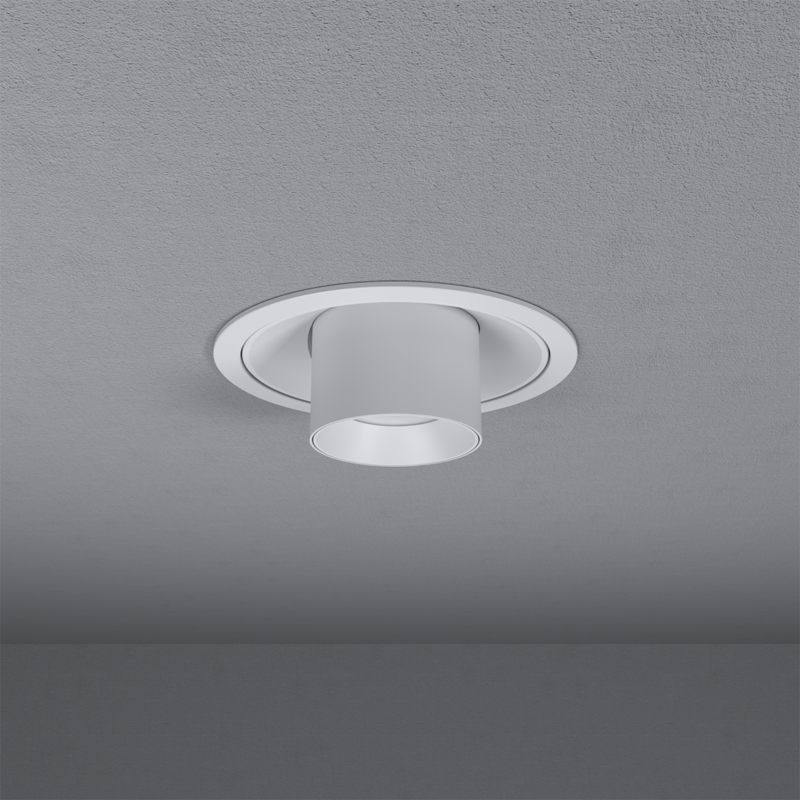

GARGANTUA 60

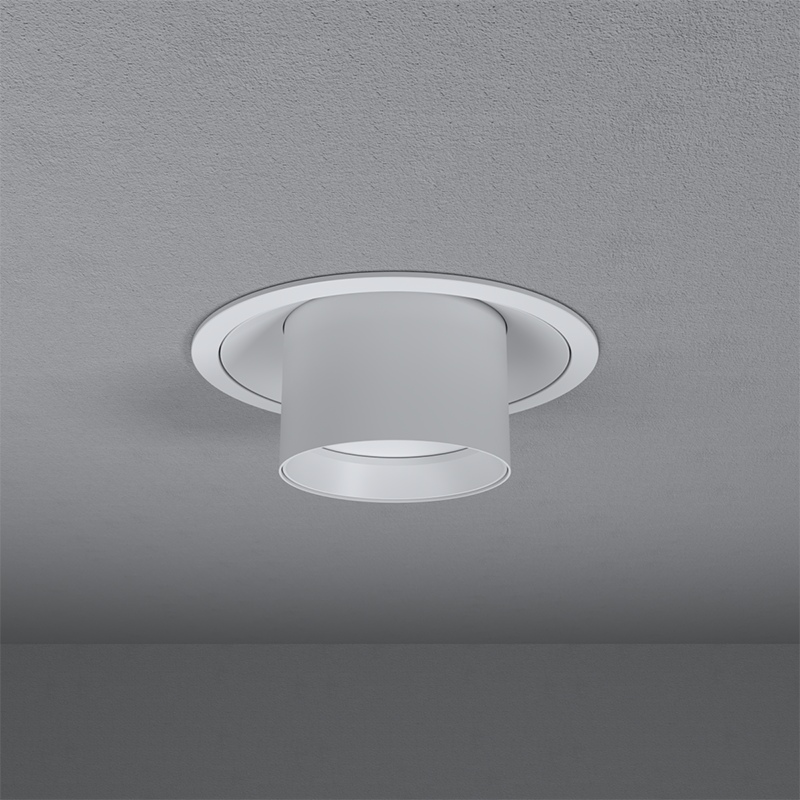

GARGANTUA 80

Model	Code	P (W)	Flux (lm)	CCT	Optics	Luminous efficiency	Finish	Driver	Download
GARGANTUA_40	G2451IF0063NW_40	6	692	4000	15°	115 lm/W	white	350mA
Curva Fotometrica	G2451IF0063NW_27	6	664	2700	15°	110 lm/W	white	350mA
Foglio Istruzioni	G2451IF0063NW	6	678	3000	15°	113 lm/W	white	350mA
	G2451IF0063NB_40	6	692	4000	15°	115 lm/W	black	350mA
	G2451IF0063NB_27	6	664	2700	15°	110 lm/W	black	350mA
	G2451IF0063NB	6	678	3000	15°	113 lm/W	black	350mA
	G2451IF0063MW_40	6	692	4000	38°	115 lm/W	white	350mA
	G2451IF0063MW_27	6	664	2700	38°	110 lm/W	white	350mA
	G2451IF0063MW	6	678	3000	38°	113 lm/W	white	350mA
	G2451IF0063MB_40	6	692	4000	38°	115 lm/W	black	350mA
	G2451IF0063MB_27	6	664	2700	38°	110 lm/W	black	350mA
	G2451IF0063MB	6	678	3000	38°	113 lm/W	black	350mA
	G2451IF0063LW_40	6	692	4000	55°	115 lm/W	white	350mA
	G2451IF0063LW_27	6	664	2700	55°	110 lm/W	white	350mA
	G2451IF0063LW	6	678	3000	55°	113 lm/W	white	350mA
	G2451IF0063LB_40	6	692	4000	55°	115 lm/W	black	350mA
	G2451IF0063LB_27	6	664	2700	55°	110 lm/W	black	350mA
	G2451IF0063LB	6	678	3000	55°	113 lm/W	black	350mA

Model	Code	P (W)	Flux (lm)	CCT	Optics	Luminous efficiency	Finish	Driver	Download
GARGANTUA_60	G2451IF0134NW_40	13	1141	4000	15°	88 lm/W	white	500mA
Curva Fotometrica	G2451IF0134NW_27	13	1096	2700	15°	84 lm/W	white	500mA
Foglio Istruzioni	G2451IF0134NW	13	1119	3000	15°	86 lm/W	white	500mA
	G2451IF0134NB_40	13	1141	4000	15°	88 lm/W	black	500mA
	G2451IF0134NB_27	13	1096	2700	15°	84 lm/W	black	500mA
	G2451IF0134NB	13	1119	3000	15°	86 lm/W	black	500mA
	G2451IF0134MW_40	13	1141	4000	38°	88 lm/W	white	500mA
	G2451IF0134MW_27	13	1096	2700	38°	84 lm/W	white	500mA
	G2451IF0134MW	13	1119	3000	38°	86 lm/W	white	500mA
	G2451IF0134MB_40	13	1141	4000	38°	88 lm/W	black	500mA
	G2451IF0134MB_27	13	1096	2700	38°	84 lm/W	black	500mA
	G2451IF0134MB	13	1119	3000	38°	86 lm/W	black	500mA
	G2451IF0134LW_40	13	1141	4000	55°	88 lm/W	white	500mA
	G2451IF0134LW_27	13	1096	2700	55°	84 lm/W	white	500mA
	G2451IF0134LW	13	1119	3000	55°	86 lm/W	white	500mA
	G2451IF0134LB_40	13	1141	4000	55°	88 lm/W	black	500mA
	G2451IF0134LB_27	13	1096	2700	55°	84 lm/W	black	500mA
	G2451IF0134LB	13	1119	3000	55°	86 lm/W	black	500mA

Model	Code	P (W)	Flux (lm)	CCT	Optics	Luminous efficiency	Finish	Driver	Download
GARGANTUA_80	G0105BI0269NW_40	20	2570	4000	15°	128 lm/W	white	700mA
Curva Fotometrica	G0105BI0269NW_27	20	2469	2700	15°	123 lm/W	white	700mA
Foglio Istruzioni	G0105BI0269NW	20	2520	3000	15°	126 lm/W	white	700mA
	G0105BI0269NB_40	20	2570	4000	15°	128 lm/W	black	700mA
	G0105BI0269NB_27	20	2469	2700	15°	123 lm/W	black	700mA
	G0105BI0269NB	20	2520	3000	15°	126 lm/W	black	700mA
	G0105BI0269MW_40	20	2570	4000	38°	128 lm/W	white	700mA
	G0105BI0269MW_27	20	2469	2700	38°	123 lm/W	white	700mA
	G0105BI0269MW	20	2520	3000	38°	126 lm/W	white	700mA
	G0105BI0269MB_40	20	2570	4000	38°	128 lm/W	black	700mA
	G0105BI0269MB_27	20	2469	2700	38°	123 lm/W	black	700mA
	G0105BI0269MB	20	2520	3000	38°	126 lm/W	black	700mA
	G0105BI0269LW_40	20	2570	4000	55°	128 lm/W	white	700mA
	G0105BI0269LW_27	20	2469	2700	55°	123 lm/W	white	700mA
	G0105BI0269LW	20	2520	3000	55°	126 lm/W	white	700mA
	G0105BI0269LB_40	20	2570	4000	55°	128 lm/W	black	700mA
	G0105BI0269LB_27	20	2469	2700	55°	123 lm/W	black	700mA
	G0105BI0269LB	20	2520	3000	55°	126 lm/W	black	700mA
