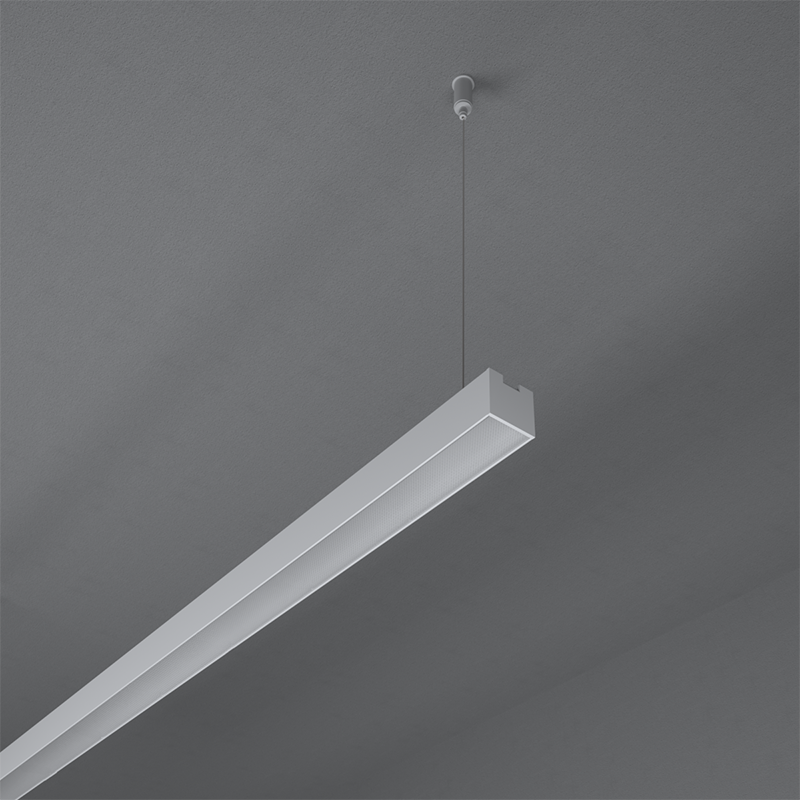

CANALETTO | GLIP

Product description

Specifications

Lenght	Lumen (Prisma)	Lumen (Opal)	Power
1000 mm	2712 lm	2233 lm	22 W
1400 mm	3797 lm	3126 lm	31 W
2000 mm	5424 lm	4466 lm	44 W
2400 mm	6509 lm	5359 lm	53 W
3000 mm	8135 lm	6699 lm	66 W

Optics	Opal	Prisma
CCT	3000	4000
CRI	>90
Driver	ON/OFF	DALI
Model color	#	#	RAL on request

Description

Seleziona modello

CANALETTO 1000

CANALETTO 1400

CANALETTO 2000

CANALETTO 2400

CANALETTO 3000

Model	Code	P (W)	Flux (lm)	CCT	Optic	Luminous efficiency	Finish	Driver	Download
CANALETTO 1000 P	G3050SO0222PG_30	22	2712	3000	Prisma	123 lm/W	Embossed white	24V	download sheet
Curva Fotometrica	G3050SO0222PG_40	22	2712	4000	Prisma	123 lm/W	Embossed white	24V	download sheet
Foglio Istruzioni	G3050SO0222PO_30	22	2712	3000	Prisma	123 lm/W	Embossed black	24V	download sheet
	G3050SO0222PO_40	22	2712	4000	Prisma	123 lm/W	Embossed black	24V	download sheet

Model	Code	P (W)	Flux (lm)	CCT	Optic	Luminous efficiency	Finish	Driver	Download
CANALETTO 1000 O	G3050SO0222OG_30	22	2233	3000	Opal	101.5 lm/W	Embossed white	24V	download sheet
Curva Fotometrica	G3050SO0222OG_40	22	2233	4000	Opal	101.5 lm/W	Embossed white	24V	download sheet
Foglio Istruzioni	G3050SO0222OO_30	22	2233	3000	Opal	101.5 lm/W	Embossed black	24V	download sheet
	G3050SO0222OO_40	22	2233	4000	Opal	101.5 lm/W	Embossed black	24V	download sheet

Model	Code	P (W)	Flux (lm)	CCT	Optic	Luminous efficiency	Finish	Driver	Download
CANALETTO 1400 P	G3051SO0312PG_30	31	3797	3000	Prisma	122.5 lm/W	Embossed white	24V	download sheet
Curva Fotometrica	G3051SO0312PG_40	31	3797	4000	Prisma	122.5 lm/W	Embossed white	24V	download sheet
Foglio Istruzioni	G3051SO0312PO_30	31	3797	3000	Prisma	122.5 lm/W	Embossed black	24V	download sheet
	G3051SO0312PO_40	31	3797	4000	Prisma	122.5 lm/W	Embossed black	24V	download sheet

Model	Code	P (W)	Flux (lm)	CCT	Optic	Luminous efficiency	Finish	Driver	Download
CANALETTO 1400 O	G3051SO0312OG_30	31	3126	3000	Opal	101 lm/W	Embossed white	24V	download sheet
Curva Fotometrica	G3051SO0312OG_40	31	3126	4000	Opal	101 lm/W	Embossed white	24V	download sheet
Foglio Istruzioni	G3051SO0312OO_30	31	3126	3000	Opal	101 lm/W	Embossed black	24V	download sheet
	G3051SO0312OO_40	31	3126	4000	Opal	101 lm/W	Embossed black	24V	download sheet

Model	Code	P (W)	Flux (lm)	CCT	Optic	Luminous efficiency	Finish	Driver	Download
CANALETTO 2000 P	G3052SO0442PG_30	44	5424	3000	Prisma	123 lm/W	Embossed white	24V	download sheet
Curva Fotometrica	G3052SO0442PG_40	44	5424	4000	Prisma	123 lm/W	Embossed white	24V	download sheet
Foglio Istruzioni	G3052SO0442PO_30	44	5424	3000	Prisma	123 lm/W	Embossed black	24V	download sheet
	G3052SO0442PO_40	44	5424	4000	Prisma	123 lm/W	Embossed black	24V	download sheet

Model	Code	P (W)	Flux (lm)	CCT	Optic	Luminous efficiency	Finish	Driver	Download
CANALETTO 2000 O	G3052SO0442OG_30	44	4466	3000	Opal	101.5 lm/W	Embossed white	24V	download sheet
Curva Fotometrica	G3052SO0442OG_40	44	4466	4000	Opal	101.5 lm/W	Embossed white	24V	download sheet
Foglio Istruzioni	G3052SO0442OO_30	44	4466	3000	Opal	101.5 lm/W	Embossed black	24V	download sheet
	G3052SO0442OO_40	44	4466	4000	Opal	101.5 lm/W	Embossed black	24V	download sheet

Model	Code	P (W)	Flux (lm)	CCT	Optic	Luminous efficiency	Finish	Driver	Download
CANALETTO 2400 P	G3053SO0532PG_30	53	6509	3000	Prisma	123 lm/W	Embossed white	24V	download sheet
Curva Fotometrica	G3053SO0532PG_40	53	6509	4000	Prisma	123 lm/W	Embossed white	24V	download sheet
Foglio Istruzioni	G3053SO0532PO_30	53	6509	3000	Prisma	123 lm/W	Embossed black	24V	download sheet
	G3053SO0532PO_40	53	6509	4000	Prisma	123 lm/W	Embossed black	24V	download sheet

Model	Code	P (W)	Flux (lm)	CCT	Optic	Luminous efficiency	Finish	Driver	Download
CANALETTO 2400 O	G3053SO0532OG_30	53	5359	3000	Opal	101 lm/W	Embossed white	24V	download sheet
Curva Fotometrica	G3053SO0532OG_40	53	5359	4000	Opal	101 lm/W	Embossed white	24V	download sheet
Foglio Istruzioni	G3053SO0532OO_30	53	5359	3000	Opal	101 lm/W	Embossed black	24V	download sheet
	G3053SO0532OO_40	53	5359	4000	Opal	101 lm/W	Embossed black	24V	download sheet

Model	Code	P (W)	Flux (lm)	CCT	Optic	Luminous efficiency	Finish	Driver	Download
CANALETTO 3000 P	G3054SO0662PG_30	66	8135	3000	Prisma	123 lm/W	Embossed white	24V	download sheet
Curva Fotometrica	G3054SO0662PG_40	66	8135	4000	Prisma	123 lm/W	Embossed white	24V	download sheet
Foglio Istruzioni	G3054SO0662PO_30	66	8135	3000	Prisma	123 lm/W	Embossed black	24V	download sheet
	G3054SO0662PO_40	66	8135	4000	Prisma	123 lm/W	Embossed black	24V	download sheet

Model	Code	P (W)	Flux (lm)	CCT	Optic	Luminous efficiency	Finish	Driver	Download
CANALETTO 3000 O	G3054SO0662OG_30	66	6699	3000	Opal	101.5 lm/W	Embossed white	24V	download sheet
Curva Fotometrica	G3054SO0662OG_40	66	6699	4000	Opal	101.5 lm/W	Embossed white	24V	download sheet
Foglio Istruzioni	G3054SO0662OO_30	66	6699	3000	Opal	101.5 lm/W	Embossed black	24V	download sheet
	G3054SO0662OO_40	66	6699	4000	Opal	101.5 lm/W	Embossed black	24V	download sheet
