OFFICIES DIAPATH SPA
Client:
Diapath SPA
Location:
Martinengo (Bergamo)
Project:
Gherardi architetti
Photo:
Marco Zanta
Diapath is an Italian company that produces and supplies high-quality solutions for pathologists and laboratory professionals. The lighting design project was developed with the goal of ensuring optimal illumination across all work environments from offices to corridors, up to the relaxation area. Each space was carefully analyzed and designed in detail to achieve the perfect balance between visual comfort, energy efficiency, and aesthetic appeal, creating welcoming, functional, and pleasant atmospheres for everyday use.
“Made in Italy and Italian Design are not just sources of inspiration, but Values we live by every day our path toward Excellence and the art of doing things well.” Diapath S.p.A.
In a work environment, light quality plays a crucial role: uniform lighting, free from flicker and glare, helps reduce visual fatigue, enhancing people’s well-being while promoting focus and productivity. For this reason, the project incorporated state-of-the-art LED technologies, capable of delivering high color rendering, low energy consumption, and excellent long-term performance.

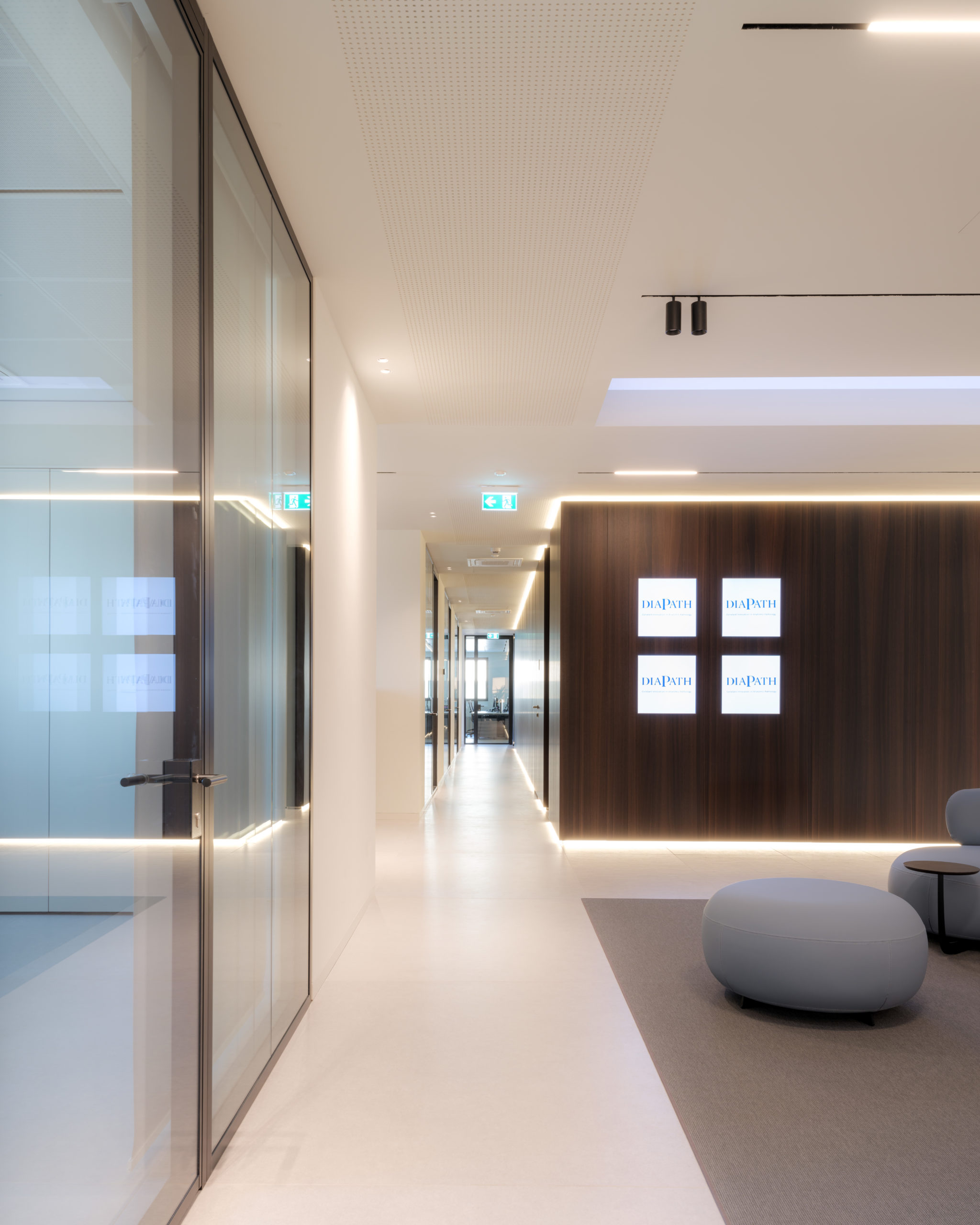

In the Diapath offices, the distribution of light sources was designed to support different operational functions while enhancing the architectural features of the spaces. Hole trimless recessed spotlights, Bard Alto linear lights, and John track-mounted fixtures were installed, each serving a specific purpose.

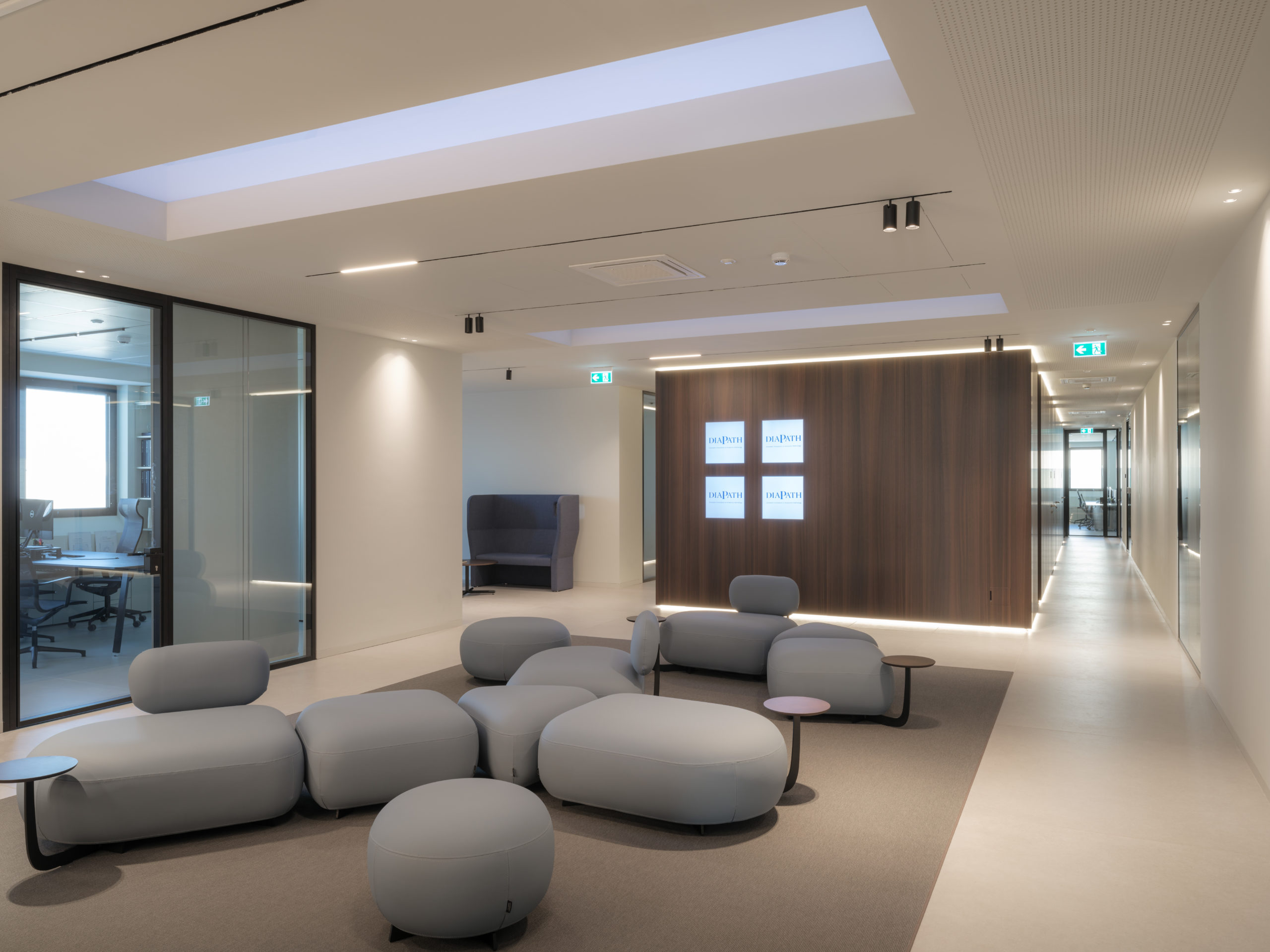

The John spotlights offer maximum flexibility they can be moved along the track, adjusted, or tilted to highlight architectural details, furnishings, or focal areas. The Hole trimless spotlights, on the other hand, provide directional and controlled lighting with beams of varying widths, ideal for ensuring precise and focused illumination.
Innovation, quality, and reliability with a special focus on the customer.

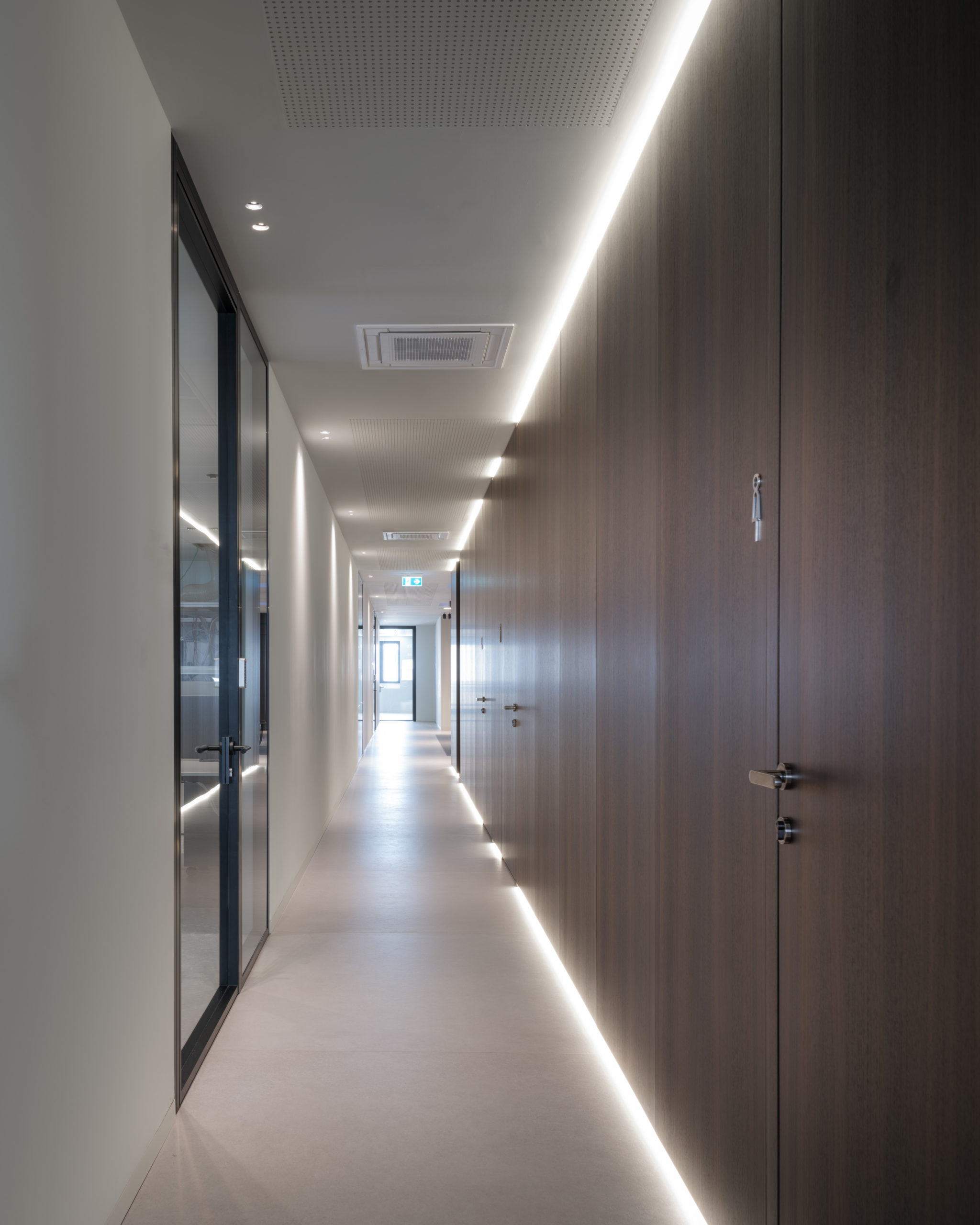

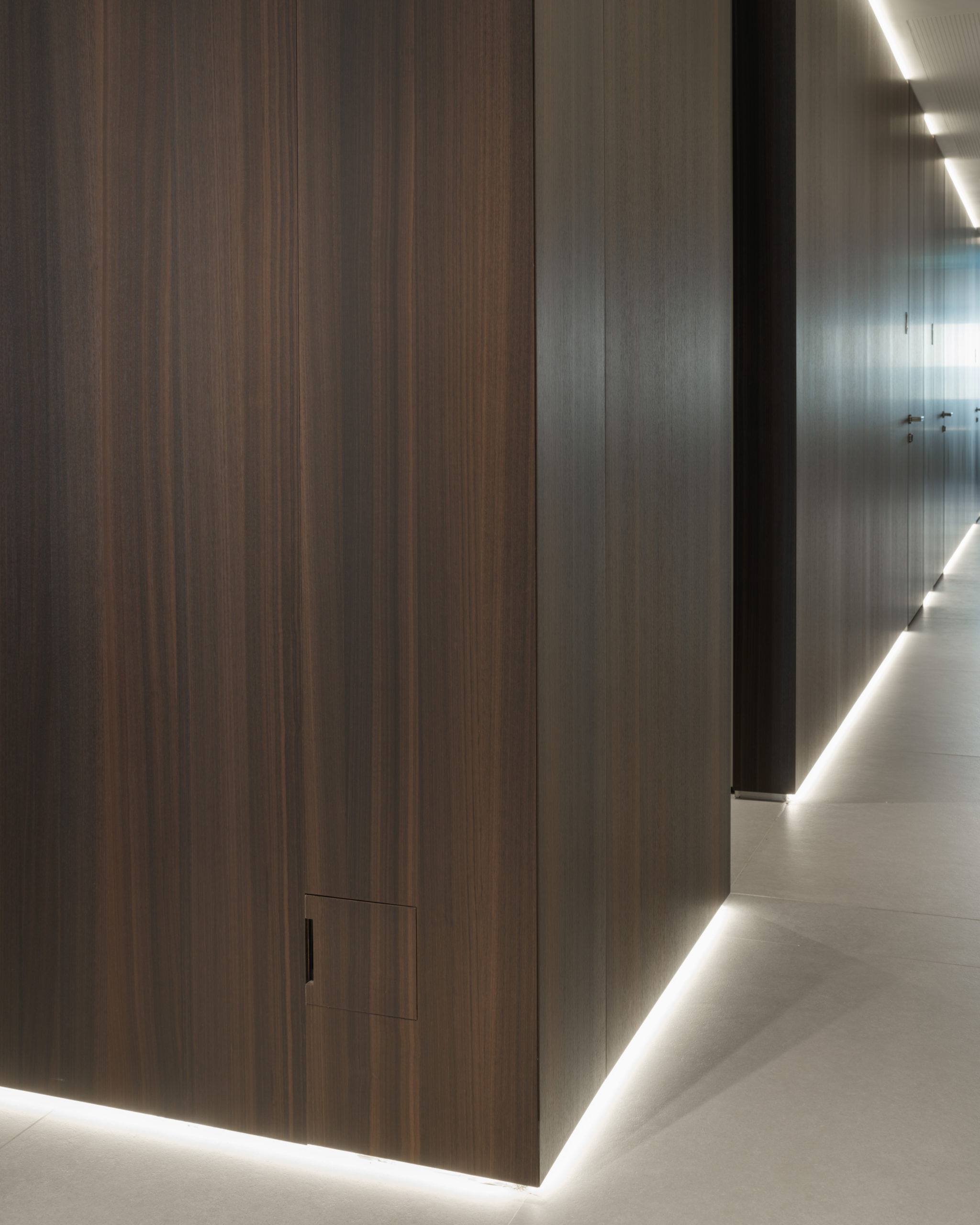

The Bard Alto linear light profiles serve as both a decorative and technical element: thanks to their continuity and versatility, they help define the volumes, guide the visual flow, and give the spaces a contemporary and dynamic character, all without compromising functionality.
Harmony, energy efficiency, creativity
In summary, the project aims to combine design and visual well-being, turning light into a true tool of comfort and identity for Diapath’s workspaces. Lighting is not conceived as a mere technical element, but as an integral part of the spatial experience, capable of positively influencing mood and the perception of the environment.
Every lighting detail interacts with the materials, colors, and architectural geometries, creating a coherent and recognizable visual language that reflects the brand’s image and values: precision, innovation, and human-centered care. Thus, light becomes not only a functional tool, but also a means of expressing corporate identity, helping to create a harmonious and inspiring workspace focused on collective well-being.
The entire project stands out for its ability to merge technical efficiency, perceptual quality, and aesthetic research, transforming the workspaces into places where light guides, enhances, and highlights the architecture, accentuating details and turning every environment into a complete visual and sensory experience.
Project products
JOHN
Product description
Specifications
| Diameter | Lumen | Power |
| 40 mm | 571 lm | 6 W |
| 50 mm | 804 lm | 10 W |
| 60 mm | 1657 lm | 18 W |
| 80 mm | 2478 lm | 26 W |
| Optics | 15° | 26° | 36° | 60° |
| CCT | 2700 | 3000 | 4000 | |
| CRI | >95 | |||
| Driver | ON/OFF* | DALI* | *on request | |
| Model color | # | # | RAL on request |
JILL
Product description
Specifications
| Lenght | Lumen | Power |
| 286 mm | 495 lm | 6 W |
| 567 mm | 990 lm | 12 W |
| 847 mm | 1485 lm | 18 W |
| 1128 mm | 1980 lm | 24 W |
| Optic | Opal | |||
| CCT | 2700 | 3000 | 4000 | |
| CRI | >95 | |||
| Driver | ON/OFF* | DALI* | *on request | |
| Model color | # | # | RAL on request |
KELLY
Product description
Specifications
| Lenght | Lumen | Power |
| 286 mm | 412 lm | 5.2 W |
| 286 mm | 1403 lm | 16.7 W |
| 567 mm | 825 lm | 9.9 W |
| 847 mm | 1236 lm | 14.5 W |
| 1128 mm | 1652 lm | 19.8 W |
| Optics | 30° | 66° | |
| CCT | 2700 | 3000 | 4000 |
| CRI | >95 | ||
| Driver | ON/OFF* | DALI* | *on request |
| Model color | # | # | RAL on request |
HOLE TRIMLESS
Product description
Specifications
| Diameter | Lumen | Power |
| 45 mm | 571 lm | 6 W |
| 55 mm | 804 lm | 10 W |
| 65 mm | 1266 lm | 13 W |
| 85 mm | 2478 lm | 26 W |
| Optic | 15° | 26° | 36° | 60° |
| CCT | 2700 | 3000 | 4000 | |
| CRI | >95 | |||
| Driver | ON/OFF | DALI | ||
| Model color | # | # | RAL on request |
MYLINE RAILS
Product description
Specifications
| Rail | Dimension |
| ML1 | 26,2X21 mm |
| ML2 | 33X33 mm |
| ML3 | 72,8X25,9 mm |
| ML4 | 74X54 mm |
| ML5 | 26,2X28,7 mm |
| ML6 | 26,2X53,7 mm |
| Lenght | 1000mm | 2000mm | 3000mm |
| Power supply | 48V | ||
| INSTALLATION | Recessed | Ceiling | Suspension |
BARD ALTO
Description profile
Specifications
| Lenghts | Finishes available |
| 1000 mm | Matt white |
| 2000 mm | Embossed white |
| 3000 mm | Anodized alluminum |
| Rust | |
| Embossed black | |
| Matt black |
| Diffuser | Opal | Clear | Satin | High opal | Semi-circular opaline |
